Honda

2014-2019 Honda TRX 420 TRX420 FA1 FA2 FA5 FA6 TM1 TE1 FM1 FM2 FE1 Fourtrax 4x4 ATV Quad Manual

2014-2019 Honda TRX 420 TRX420 FA1 FA2 FA5 FA6 TM1 TE1 FM1 FM2 FE1 Fourtrax 4x4 ATV Quad Manual

Regular price £11.99 GBP
Regular price Sale price £11.99 GBP
Sale Sold out
Tax included. Shipping calculated at checkout.
Manual Type

2014 to 2019 Honda TRX 420 TRX420 FA1 FA2 FA5 FA6 TM1 TE1 FM1 FM2 FE1 Fourtrax Rancher AT 4x4 ATV Manual Service / Repair / Workshop Manual

Provided in PDF form, in English Language.

Includes wiring diagram.

Total of 648 pages.

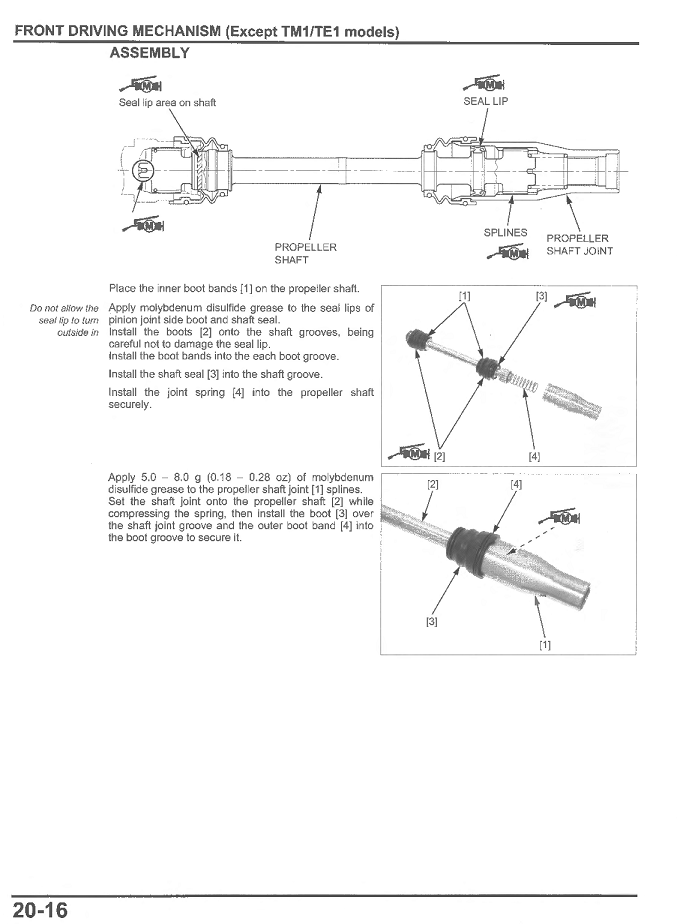

Sample page is shown in the second product picture.



Features Following Chapters...

1. General Information

2. Frame/Body Panels/Exhaust System

3. Maintenance

4. Lubrication System

5. Fuel System

6. Engine Removal/Installation

7. Cylinder/Cylinder Head/Piston

8. Clutch

9. Gearshift Linkage

10. Alternator/Starter Clutch

11. Crankshaft/Balancer/Transmission

12. Front Wheel/Suspension/Steering System

13. Rear Wheel/Suspension

14. Brake System

15. Front Drive Mechanism

16. Rear Drive Mechanism

17. Battery/Charging System

18. Ignition System

19. Electric Starter

20. Lights/Switches

21. Wiring Diagram

22. Technical Feature

23. Troubleshooting

24. Index

Manual File Delivery

View full details
  • Electronic File Delivery

    Our products are all delivered digitally, via auto generated download links. This is populated once you have completed your checkout process.

    File Types

    Most files provided in these products are in PDF format, and need a program such as Adobe Acrobat to be read on PC, but can also be read on any tablet, iPad, Phone or any other device which can download files and open PDF files.

    Some files are also supplied in other formats, which may be pictures in JPG format or such like.



    Manual File Quality

    Most of the manuals found on this site will have been scanned from hard copy.

    Some of these are not available at all, and so may be scans of photocopied files of the original manual.

    This is the nature of the problem in finding literature to help support ongoing use and maintenance of older machines.

    Files will have been cleaned up and made easier to use where appropriate.

    Many of these files may be available from other sources, but what we offer here is a central source for many of the files available, most of which in a more usable format.


    Shipping


    We do not provide hard copy manuals at all.

    Only electronic versions of all of the files are supplied, which allows for instant download and availability.

    As well as the Service & Workshop Manuals we list, there may also be additional support files such as Owners Manuals available for your model also. These will be linked to the Service / Workshop Manual page if available.
