2020-2024 Triumph Rocket III GT Triple Cruiser Service Manual
2020-2024 Triumph Rocket III GT Triple Cruiser Service Manual
Couldn't load pickup availability
2020 to 2024 Triumph Rocket III / 3 GT Service / Repair / Workshop Manual
This is for the 2.5L engine model.
Provided in PDF form, in English language.
Includes wiring diagram.
Total of 1,656 pages.

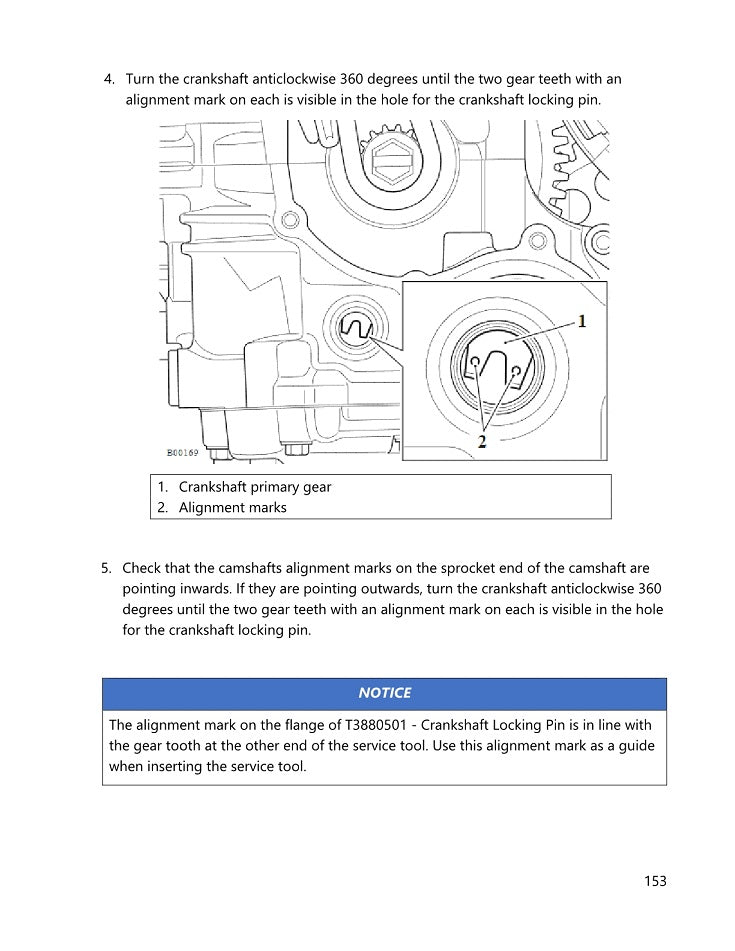

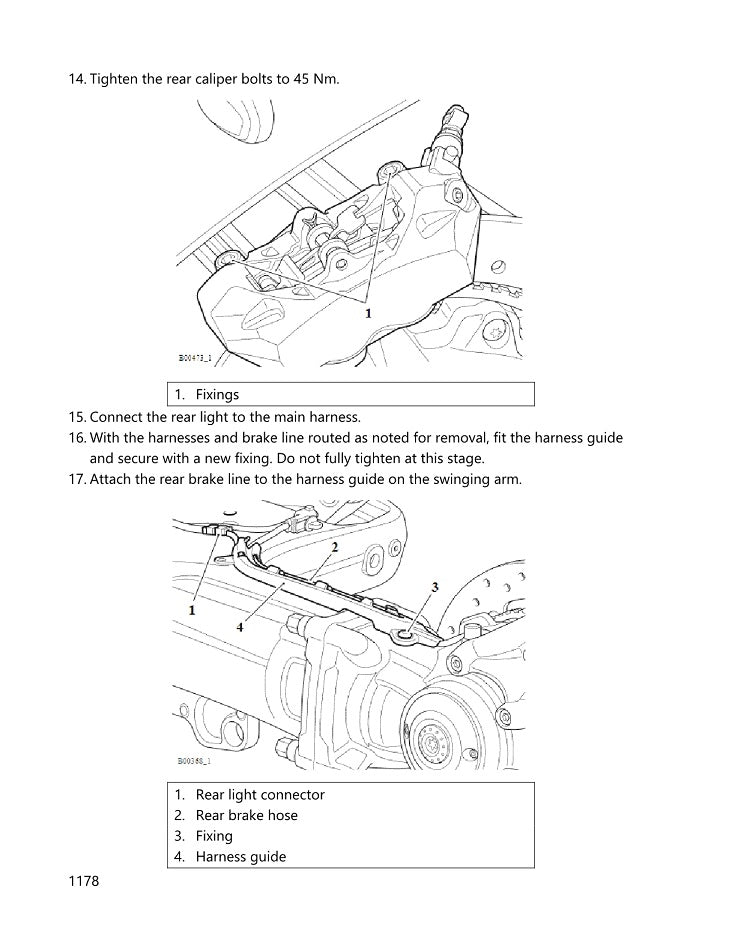

Sample page is shown in the second product picture.
Features Following Chapters...
1. Introduction
- Introduction
- How to use manual
- Warnings, Cautions & Notes
- Noise Control System
- References
- Dimensions
- Repairs & Replacements
- Force
- Edges
- Tightening Procedure
- Use of Torque Wrenches
2. General Information
- Ignition System Safety
- Dangerous Substances
- Third Party Products
- Flouroelastomers
- Oils
- Health Protection Precautions
- Environmental Protection Precautions
- Brakes
- Safety Instructions
- Chassis Bearing Lubrication
- Fuel Handling Precautions
- Electrical Precautions
- Electrical Testing
- Circuit Diagrams
- Tracing Circuits
- CAN (Controller Area Networking) System
- LIN (Local Interconnect Network) System
3. Service Tools
- Service Tools & Garage Equipment
4. Specifications
- Engine
- Cylinder Head & Valves
- Camshafts
- Clutch & Primary Drive
- Pistons
- Connecting Rods
- Crankshaft
- Transmission
- Final Drive
- Lubrication
- Ignition System
- Fuel System
- Fuel Injection System
- Emissions Control
- Coolant System
- Suspension
- Brakes
- Wheels & Tyres
- Frame
- Electrical
5. Torque Wrench Settings
6. Routing
- Main Wiring Harness Routing
- Clutch Control Routing
- Fuel Tank Evaporative Hose Routing
- ABS Routing
7. Scheduled Maintenance
8. Engine Covers
9. Cylinder Head
10. Cylinders & Pistons
11. Clutch
12. Crankcase, Crankshaft & Connecting Rods
13. Balancer
14. Transmission
15. Starter Drive & Sprag Clutch
16. Lubrication
17. Engine Remove & Install
18. Fuel & Exhaust System & engine Managements
19. Immobiliser / TPMS
20. Removal / Installation of Fuel & Air Components
21. Removal / Installation of Engine Management Components
22. Removal / Installation of Exhaust System Components
23. Cooling
24. Front Suspension & Steering
25. Rear Suspension & Swinging Arm
26. Brakes
27. Wheels & Tyres
28. Final Drive
29. Frame & Bodywork
30. Electrical
