2014-2016 Indian Cheftain Service Manual
2014-2016 Indian Cheftain Service Manual
Couldn't load pickup availability
2014 2015 2016 Indian Cheftain Service / Repair / Workshop Manual
Provided in PDF form, in English Language.
Includes wiring diagram.
This is supplied as a genuine Indian workshop manual, consisting 570 of pages.

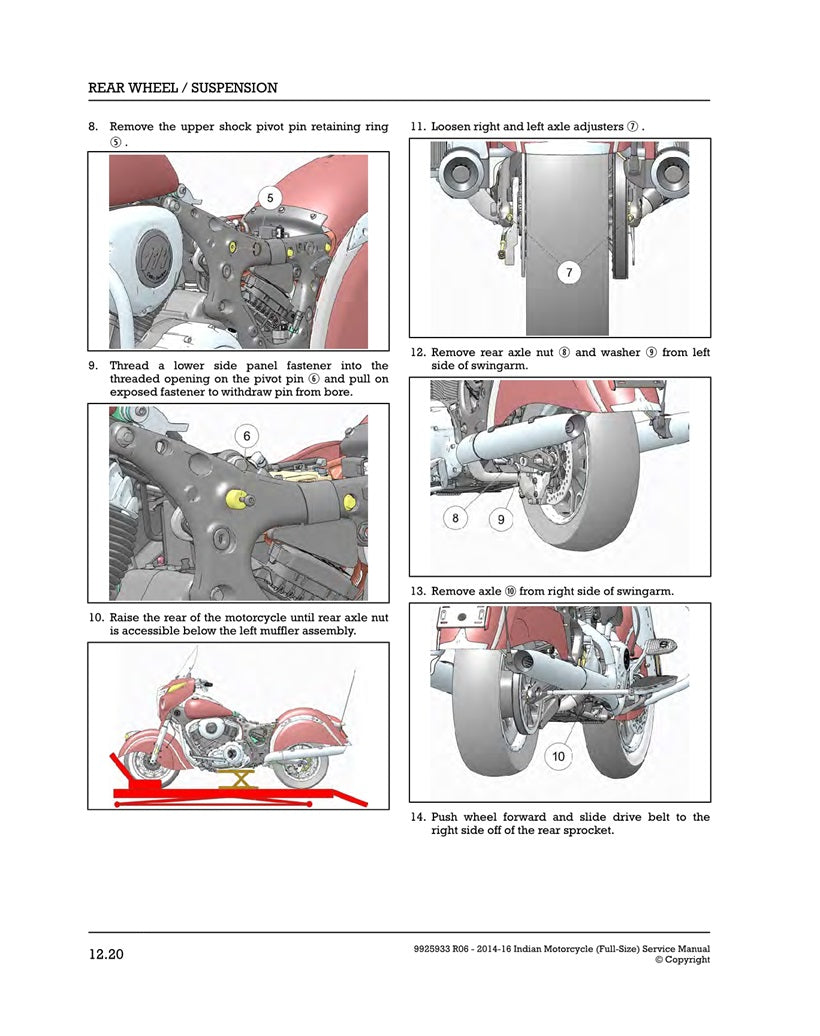

Sample pages are shown in the second product images.
Features Following Chapters...
1. General Specifications
- Vehicle Information
- General Specifications
- Vehicle Loading
- Technical Literature
- Refinishing
- Emission Information
- Special Tools
- Torque Table
2. Maintenance
- Specifications
- Lubricants
- Periodic Maintenance Interval Table
- Service Notes
- Special Tools
- Brake-in Procedures
- Air Filter Replacement
- Engine Oil Level Check
- Engine Oil & Filter Change
- Cooling System Overview
- Coolant Strength / Type
- Coolant Level Inspection
- Coolant System Pressure Test
- Coolant System Hoses
- Radiator Inspection / Cleaning
- Coolant Drain / Fill
- Idle Speed / Fast Idle Speed
- Tire Pressure / Specifications
- Clutch Cable Inspection / Lubrication
- Clutch Lever Lubrication
- Clutch Lever Free Play
- Front Brake Lever Inspection
- Front Brake Lever Lubrication
- Brake Pedal Inspection
- Brake Pedal Lubrication
- Shift Pedal Inspection / Lubrication
- Shift Pedal Adjustment
- Brake Fluid Level Inspection
- Front Brake Pad Inspection
- Rear Brake Pad Inspection
- Crankcase Ventilation System
- Fuel Tank Vent Inspection
- Evaporative Emission Control System
- Fuel Supply Hose / Fuel Rail Inspection
- Spark Plug Removal
- Spark Plug Inspection / Gap
- Spark Plug Installation
- Engine Compression Test
- Battery Inspection, Charging, Storage, Removal & Installation
- Drive Belt Inspection, Specifications, Tension, Adjustment
- Sprocket Inspection
- Fuse Replacement
- Headlight Adjustment
- Side Stand Inspection, Removal, Installation
- Steering Head / Front Wheel Inspection
- Swingarm Inspection
- Rear Shock Preload
- Valve Clearance Inspection & Adjustment
3. Frame / Body
- General Information
- Assembly Views
- Side Cover Removal / Installation
- Floorboard Removal / Installation
- Footpeg Removal / Installation
- Seat Removal / Installation
- Highway Bar Removal / Installation
- Lower Fairing Removal / Installation
- Front Fender Removal / Installation
- Trunk Removal / Installation
- Rear Fender Removal / Installation
- Front Frame Removal / Installation
- Instrument Panel Removal / Installation
- Outer Fairing Removal / Installation
- Inner Fairing Removal / Installation
- Nacelle Removal / Installation
4. Lubrication / Cooling
- General Information
- Assembly Views
- Oil Pressure Inspection
- Oil Pump Service
- Oil Cooler Service
5. Fuel System / Exhaust
- General Information
- Service Precautions
- Assembly Views
- Exhaust Service
- Air Cleaner Service
- Fuel Delivery Service
- EFI Service
- CAN Diagnostics
- Digital Wrench
- Troubleshooting
6. Engine Removal / Install
- General Information
- Assembly Views
- Engine Removal
- Engine Installation
7. Cylinder Head / Valves
- General Information
- Assembly Views
- Cam Chain Service
- Camshaft / Lifter Service
- Camshaft Service
- Cylinder Head Service
8. Cylinder / Piston
- General Information
- Assembly Views
- Cylinder / Piston Service
9. Clutch / Primary / Shift
- General Information
- Assembly Views
- Service Procedures
- Clutch Service
- Torque Compensator Service
10. Transmission / Crankshaft
- General Information
- Assembly Views
- Balance Shaft Service
- Starter Drive Service
- Crankshaft Service
- Troubleshooting
11. Front Wheel / Suspension
- General Information
- Assembly Views
- Service Procedures
- Troubleshooting
12. Rear Wheel / Suspension
- General Information
- Assembly Views
- Drive Belt Service
- Drive Belt Sprocket Service
- Driven Sprocket Service
- Rear Wheel Service
- Swingarm Service
- Troubleshooting
13. Tires
- General Information
- Tire Inspection
- Tire Pressure Monitoring service (TPMS)
- Tire Changing
- Tire Removal
- Wheel Inspection
- Valve Stem
- Tire Installation
- Tire Balancing
- Spoked Wheel Service
- Wheel Lacing
- Troubleshooting
14. Brakes
- General Information
- Assembly Views
- Anti-Lock Brakes System (ABS) Service
- ABS Brake System Bleeding
- Brake System Service
- Troubleshooting
15. Starting / Charging
- General Information
- Assembly Views
- Battery Service
- Starter Motor Service
- Starting System Tests
- Charging System Service
16. Ignition system
- General Information
- Troubleshooting
17. Chassis Electrical
- General Information
- Assembly Views
- Fuse Box
- Vehicle Control Module (VCM)
- Headlight Service
- Horn Service
- Tail Light Service
- Turn Signal / Hazard System Service
- Instrumentation
- Cruise Control
- Security Alarm System
- Power Windshield
- Switch Testing
- Wiring Diagrams
