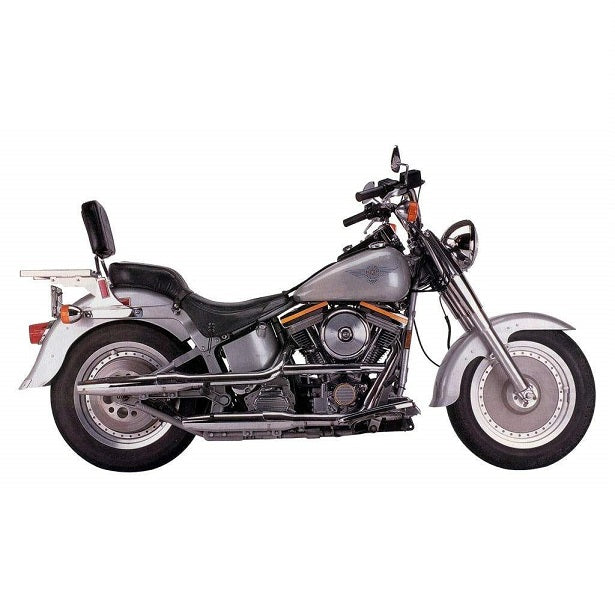

1991-1992 Harley Davidson FLSTF Softail Fat Boy Service Manual
1991-1992 Harley Davidson FLSTF Softail Fat Boy Service Manual
Couldn't load pickup availability
1991 to 1992 Harley Davidson FLSTF Softail Fat Boy Service / Repair / Workshop Manual
Covering all engine size 80 cubic inch (1340cc).
Provided in PDF form, in English Language.
Includes wiring diagram.
This is supplied as a genuine HD workshop manual, consisting of 347 page Service Manual.

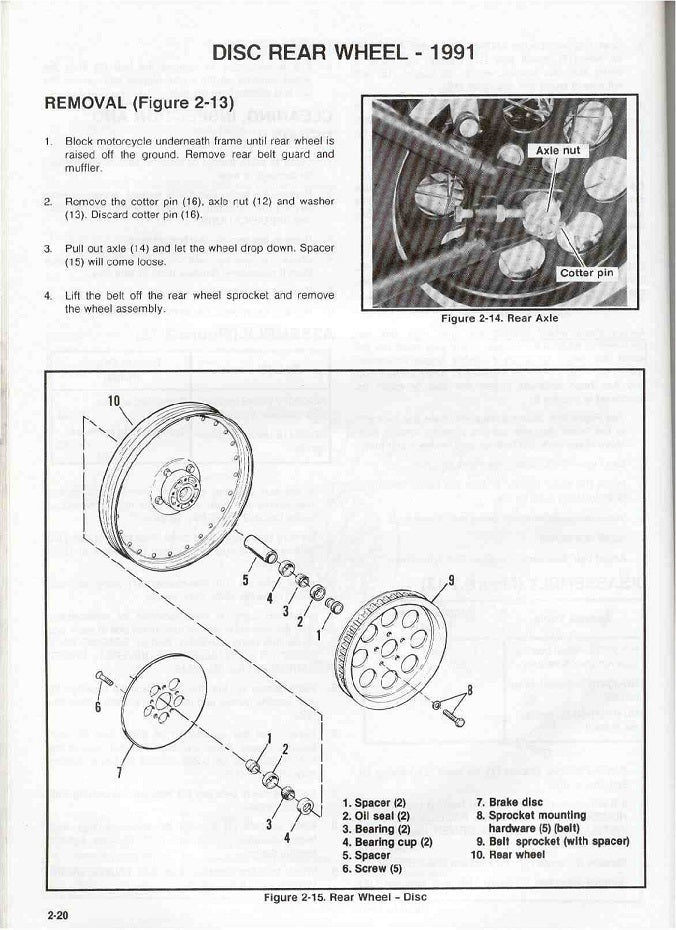

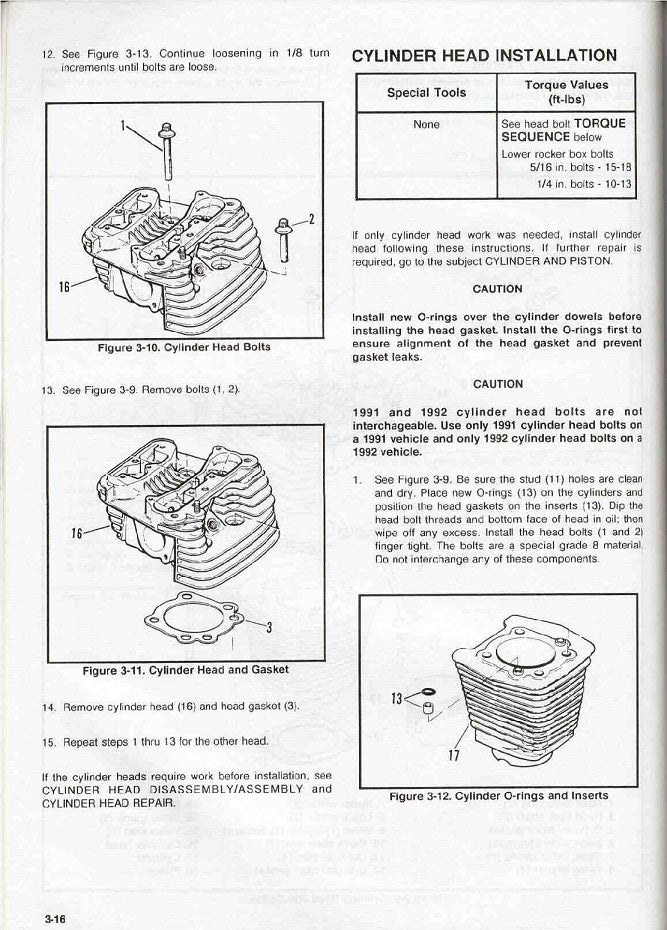

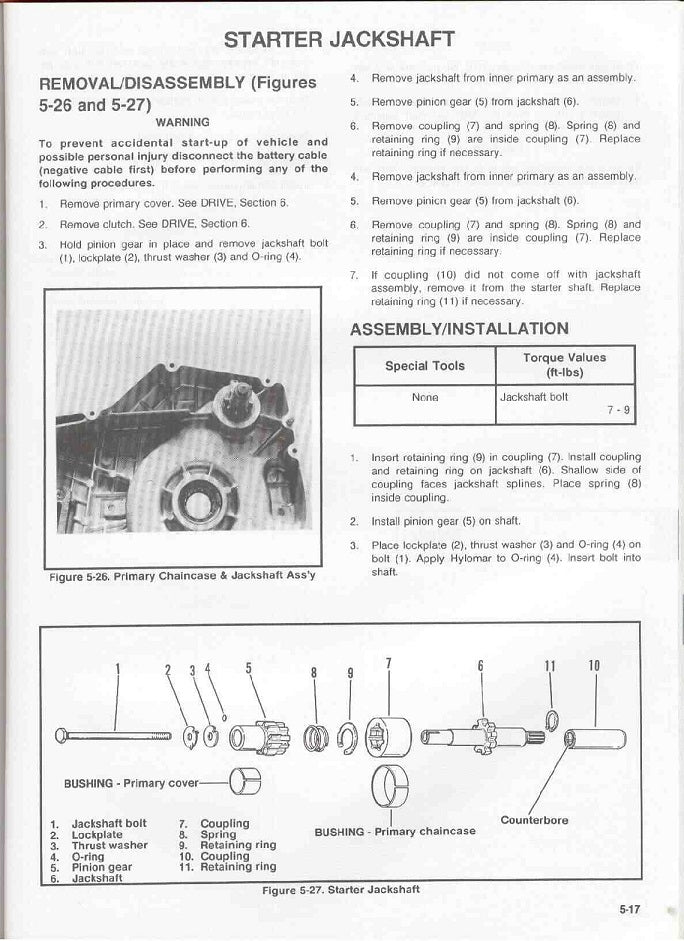

Sample pages are shown in the second product images.
Features Following Chapters...
1. Product
- Service Intervals
- Side Views
- Storage
- Fluid Requirements
- Fastener Torque Values
- Metric Conversion Table
- Troubleshooting
- Shop Practices
- Tools Safety
- Tools
2. Chassis
- Specifications
- Front Fork Adjustments
- Checking Wheel Bearing End Play
- Laced Front Wheel
- Disc Front Wheel
- Laced or Disc Rear Wheel
- Lacing wheels
- Truing Laced Wheel
- Disc Rim runout
- Tires
- Vehicle alignment
- Brakes
3. Engine
- Service Wear Limits
- General Information
- Troubleshooting
- Stripping Motorcycle for Engine Repair
- Cylinder Head
- Cylinder & Piston
- Oil Pump
- Oil Filter Mount
- Hydraulic Valve Lifters & Guides
- Gearcase Cover & Timing Gears
- Crankcase
- Flywheels
- Oil Tank
4. Fuel System
- Specifications
- Carburetor
- Fuel Supply Valve
- Fuel Tank
- Air Cleaner
- Evaporative Emissions Control
- Exhaust system
5. Electric Starter
- Specifications
- Starter System
- Diagnostics/Troubleshooting
- Starting Activation Circuits
- Starter System Diagnosis
- Starter
- Starter Solenoid
- Starter Jackshaft
6. Drive
- Specifications
- Primary Chain
- Drive Belt & Sprocket
- Transmission Sprocket
- Clutch
- Primary Chaincase
7. Transmission
- Specifications
- General Description & Adjustments
- Shifter Cam Assembly
- Shifter Forks
- Transmission Side Cover
- Mainshaft & Countershaft
- Transmission Case
8. Electrical
- Specifications
- Ignition System
- Vacuum Operated Electric Switch (V.O.E.S.)
- Spark Plugs
- Ignition Coil
- Ignition Module & Cam Position Sensor
- Ignition/Light Switch
- Charging System
- Alternator
- Voltage Regulator
- Battery
- Headlamp
- Turn Signals/Running Lights
- Tail Lamp
- Passing Lamp (FLSTC)
- Stoplight Switches
- Turn Signal Canceller
- Horn
- Main Wiring Harness
- Electric Speedometer
- Connectors
- Wiring Diagrams
Manual File Delivery
Manual File Delivery
-
Electronic File Delivery
Our products are all delivered digitally, via auto generated download links. This is populated once you have completed your checkout process.
File TypesMost files provided in these products are in PDF format, and need a program such as Adobe Acrobat to be read on PC, but can also be read on any tablet, iPad, Phone or any other device which can download files and open PDF files.
Some files are also supplied in other formats, which may be pictures in JPG format or such like.
Manual File Quality
Most of the manuals found on this site will have been scanned from hard copy.
Some of these are not available at all, and so may be scans of photocopied files of the original manual.
This is the nature of the problem in finding literature to help support ongoing use and maintenance of older machines.
Files will have been cleaned up and made easier to use where appropriate.
Many of these files may be available from other sources, but what we offer here is a central source for many of the files available, most of which in a more usable format.
Shipping
We do not provide hard copy manuals at all.Only electronic versions of all of the files are supplied, which allows for instant download and availability.
As well as the Service & Workshop Manuals we list, there may also be additional support files such as Owners Manuals available for your model also. These will be linked to the Service / Workshop Manual page if available.
