Yamaha

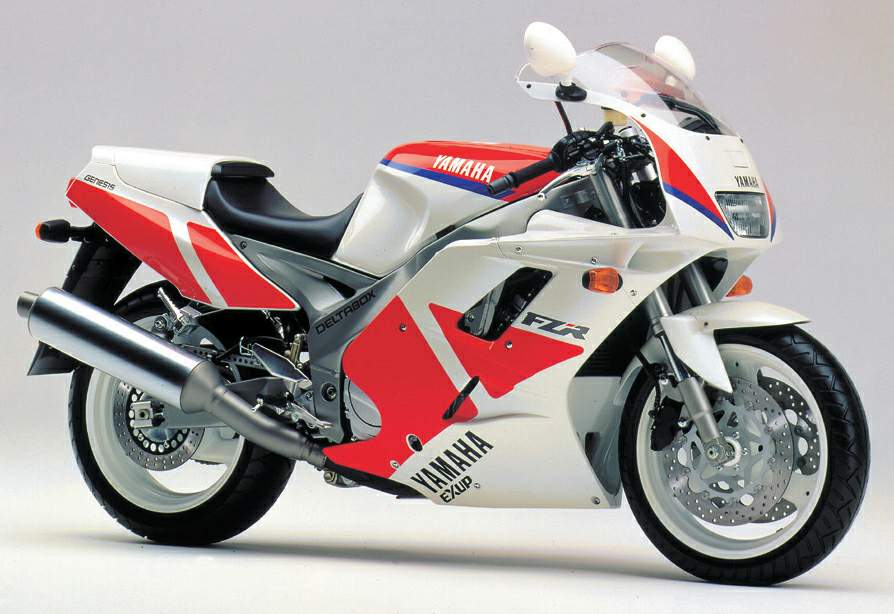

1990-1995 Yamaha FZR1000 FZR 1000 3GM Supersport Service Manual

1990-1995 Yamaha FZR1000 FZR 1000 3GM Supersport Service Manual

$24.00 AUD
$24.00 AUD
Sale Sold out
Tax included. Shipping calculated at checkout.
Manual Type

1990 to 1995 Yamaha FZR1000 '3GM' Model Supersports 1000cc Service / Repair / Workshop Manual

Provided in PDF form, in English Language.

Includes wiring diagram.

Total of 446 pages in manual, plus the 1990, 1991 & 1994 Service Information Booklets.

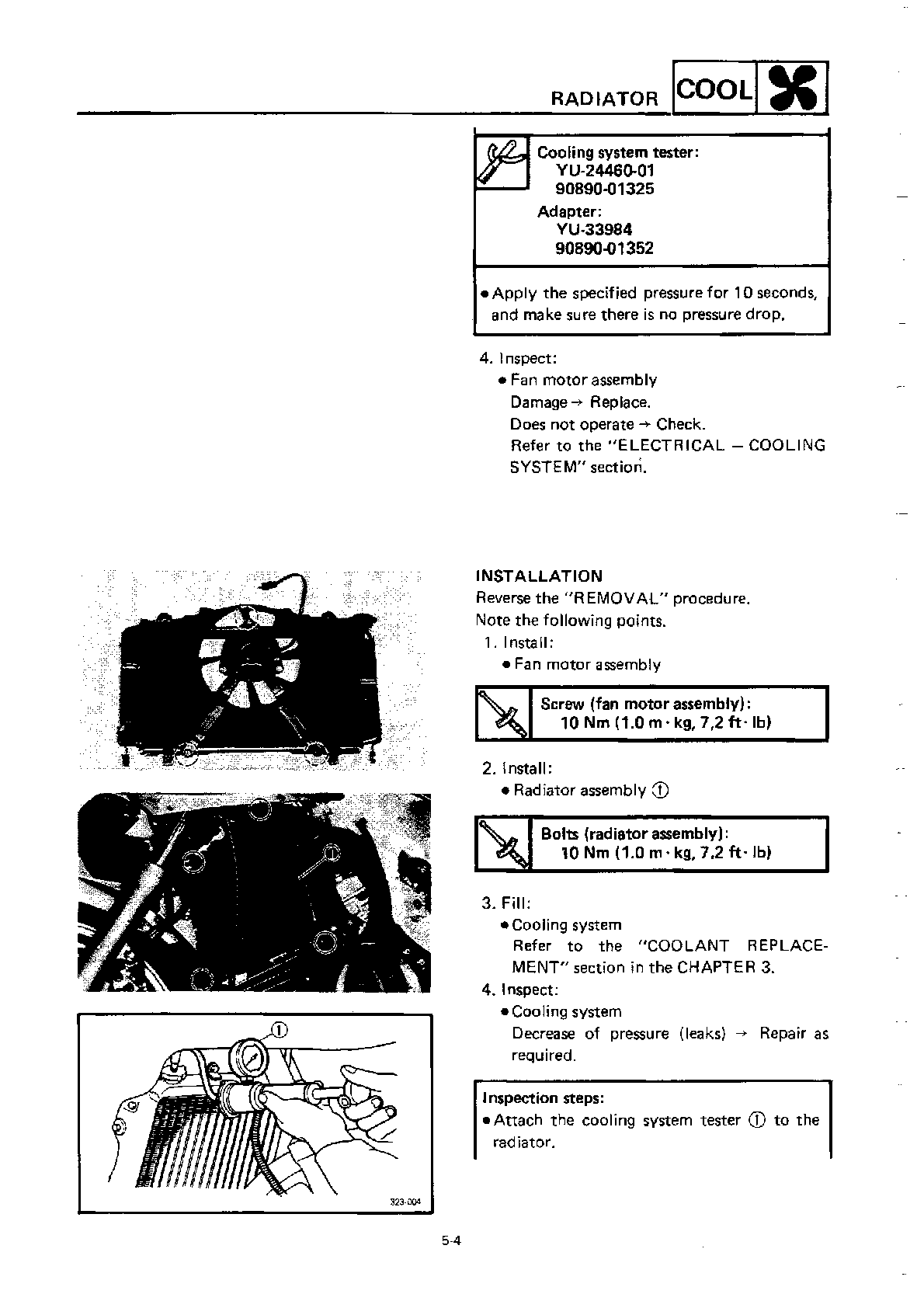

Sample page is shown in the second product picture.



Features Following Chapters...

1. General Information - Model Identification, Important Information, Special Tools.

2. Specifications, Lubrication Diagram, Coolant Diagram, Cable Routing

3. Periodic Inspection & Adjustment - Maintenance Intervals Chart, Cowling Removal & Installation, Engine, Chassis, Electrical.

4. Engine Overhaul - Engine Removal, Engine Disassembly, Inspection & Repair, Engine Assembly & Adjustment.

5. Cooling System

6. Carburettor

7. Chassis - Front Wheel, Rear Wheel, Brakes, Front Fork, Steering Head & Handlebar, Rear Shock & Swingarm, Drive Train & Sprocket.

8. Electrical

9. Troubleshooting

Manual File Delivery

View full details

  • Electronic File Delivery

    Our products are all delivered digitally, via auto generated download links. This is populated once you have completed your checkout process.

    File Types

    Most files provided in these products are in PDF format, and need a program such as Adobe Acrobat to be read on PC, but can also be read on any tablet, iPad, Phone or any other device which can download files and open PDF files.

    Some files are also supplied in other formats, which may be pictures in JPG format or such like.



    Manual File Quality

    Most of the manuals found on this site will have been scanned from hard copy.

    Some of these are not available at all, and so may be scans of photocopied files of the original manual.

    This is the nature of the problem in finding literature to help support ongoing use and maintenance of older machines.

    Files will have been cleaned up and made easier to use where appropriate.

    Many of these files may be available from other sources, but what we offer here is a central source for many of the files available, most of which in a more usable format.


    Shipping

    We do not provide hard copy manuals at all.

    Only electronic versions of all of the files are supplied, which allows for instant download and availability.

    As well as the Service & Workshop Manuals we list, there may also be additional support files such as Owners Manuals available for your model also. These will be linked to the Service / Workshop Manual page if available.
