1986on Yamaha RZ350R RZ 350 LC Service Manual

1986on Yamaha RZ350R RZ 350 LC Service Manual

Regular price $24.00 AUD
Regular price Sale price $24.00 AUD
Sale Sold out
Tax included. Shipping calculated at checkout.
Manual Type

1986 onwards Yamaha RD350LC R LC RD 350 LC Service / Repair / Workshop Manual

This is known as the 2nd Generation LC, or YPVS / Power valve model.

Provided in PDF form is the 242 page 1985 RZ350 L LC N NC manual, in English Language plus 66page 1986on RD350 Service Information manual.

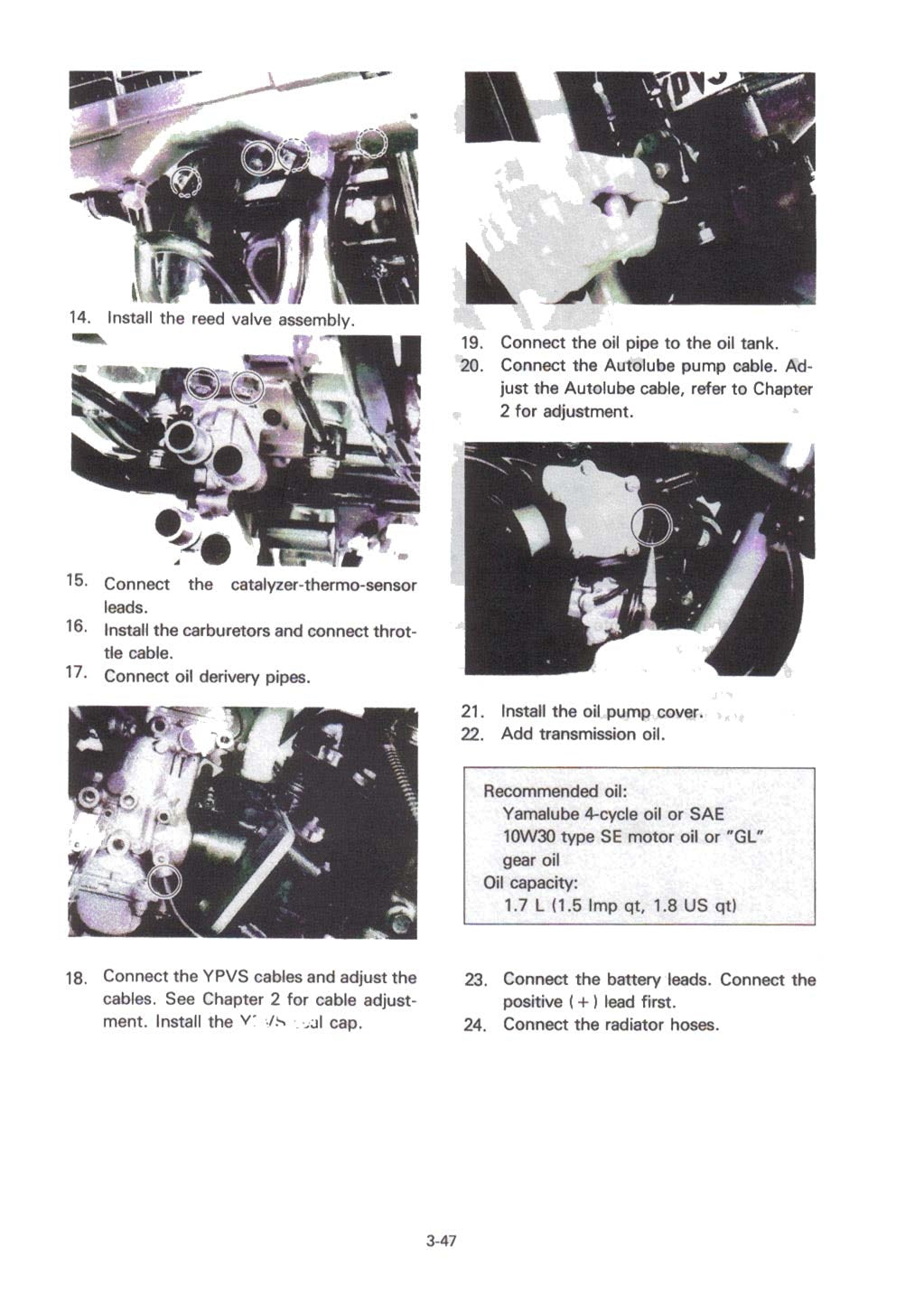

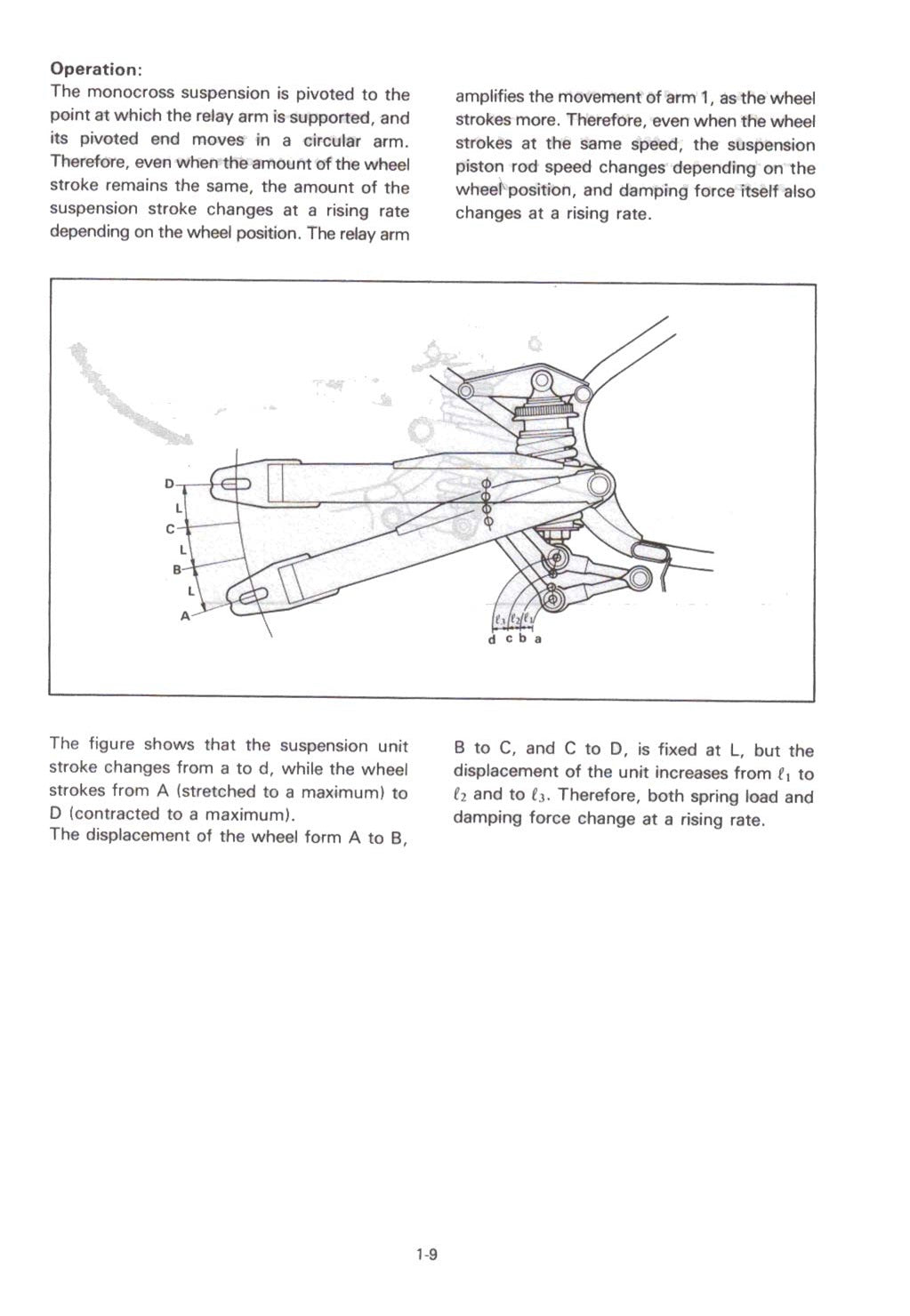

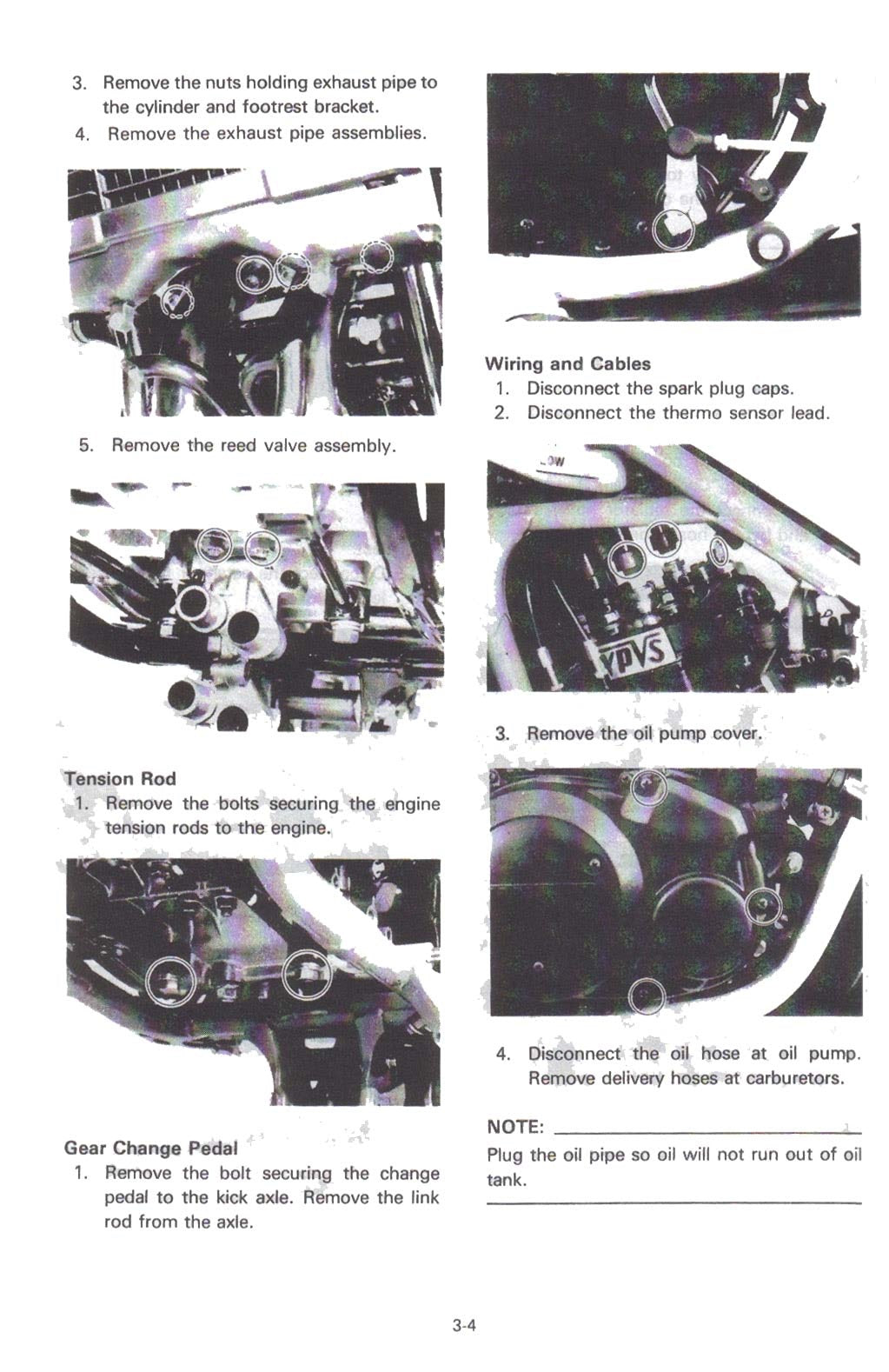

Sample page is shown in the second product picture.

1986 1987 1988 1989 1990 1991 1992

Features Following Chapters...

1. General Information

  • Major Features - YPVS, Air Assisted Fork, Monocross Suspension
  • Model Identification+
  • Special Tools & Gauges

2. Periodic Inspection & Adjustment

  • Introduction
  • Maintenance Intervals
  • Carburetor
  • Air Cleaner
  • Autolube Pump
  • Engine & Transmission Oil
  • Coolant Level
  • Handling notes of Coolant
  • Clutch Adjustment

3. Engine Overhauling

  • Notes on Maintenance
  • Engine Removal
    • Preparation for Removal
    • Fuel Tank Assembly
    • Exhaust
    • Gear Change Pedal
    • Wiring & Cables
    • Carburetor
    • Generator
    • Drive Chain
    • Removal
  • Disassembly
    • Reed Valve Assembly
    • Radiator Hose
    • Thermosensor
    • Cover
    • Cylinder Head
    • Cylinder
    • Piston Pin & Piston
    • Kick Crank
    • Crankcase Cover Right
    • Clutch Assembly & Primary Drive Gear
    • Kick Axle Assembly
    • Change Shaft Assembly
    • Clutch Push Rod
    • Cam Stopper Plate
    • Bearing Stopper Plate
    • Crankcase
    • Transmission
    • Shifter
    • Neutral Switch
    • Tachometer Gear
    • Crankshaft
  • Inspection & Repair
    • Cylinder Head
    • Cylinder
    • Piston
    • Piston clearance
    • Piston Rings
    • Piston Pin & Bearing
    • Autolube Pump
    • Clutch
    • Primary Drive
    • Kick Starter
    • Shifter
    • Transmission
    • Crankshaft
    • Neutral Switch
    • Tachometer Gear
    • Bearings & Oil Seals
    • Crankcase
  • Engine Assembly & Adjustment
    • Important Information
    • Engine Lubrication Chart
    • Crankshaft Installation
    • Tachometer Gear
    • Neutral Switch
    • Transmission & Shifter Installation
    • Crankcase
    • Kick Starter Assembly
    • Kick Idle, Tachometer Drive, Primary Drive & Water Pump Drive Gears
    • Clutch
    • Right Hand Crankcase Cover
    • Kick Crank Assembly
    • Piston
    • Cylinder
    • Cylinder Head
    • Thermosensor & Joint Cover
    • Radiator Hose & Joint
    • Reed Valve Assembly
  • Mounting

4. Cooling System

  • Operation
  • Handling Notes
  • Coolant Replacement
  • Radiator Removal, Inspection & Installation
  • Water Pump Disassembly, Inspection & Reassembly

5. Carburetion

  • Carburetor Inspection & Repair
  • Reed Valve Assembly Inspection

6. Chassis

  • Front Wheel
    • Front Wheel Removal
    • Installing Front Wheel
    • Front Axle
    • Front Wheel Inspection
    • Replacing Wheel Bearings
  • Rear Wheel
    • Rear Wheel Removal
    • Installing Rear Wheel
    • Rear Axle
    • Replacing Wheel Bearings
    • Rear Wheel Inspection
    • Checking Brake Shoe Wear
    • Brake Drum
    • Brake Shoe Plate
  • Front Disc Brake
    • Caliper Pad Replacement
    • Caliper Disassembly
    • Master Cylinder Disassembly
    • Brake Inspection & Repair
    • Brake Reassembly
    • Air Bleeding
  • Front Fork
    • Removal & Disassembly
    • Inspection
    • Assembly
  • Steering Head
    • Adjustment
    • Disassembly
    • Inspection
    • Installation
  • Monocross Suspension
    • Features
    • Principles of Operation
    • Handling Notes
    • Notes on Disposal
    • Removal
  • Swing Arm
    • Inspection
    • Removal
  • Drive Chain & Sprockets
    • Drive Sprocket
    • Driven Sprocket
    • Chain Inspection
    • Chain Maintenance
  • Cables & Fittings
    • Cable Maintenance
    • Throttle Maintenance

7. Electrical

  • Ignition System
    • Ignition Timing
    • Spark Gap Test
    • Pulser & Charging Coil Test
    • Ignition Coil
  • Charging System
    • AC Generator
    • IC Voltage Regulator
    • Checking Silicon Rectifier
  • Battery
    • Checking
    • Service Life
  • Lighting & Signal Systems
    1. Lighting System Checks & Tests
    2. Self Cancelling Flasher System
    3. Headlight
  • Water Temperature Gauge
    • Description
    • Operation
    • Troubleshooting
    • Inspection

8. Appendices

  • Troubleshooting Guide
  • Specifications
  • Wiring Diagram
  • Cable Routing
