1985 Yamaha RZ350N LC RZ 350 LC Service / Repair / Workshop Manual
This is known as the 2nd Generation LC, or YPVS / Power valve model.
Provided in PDF form is the 242 page 1985 RZ350 L LC N NC manual, in English Language.

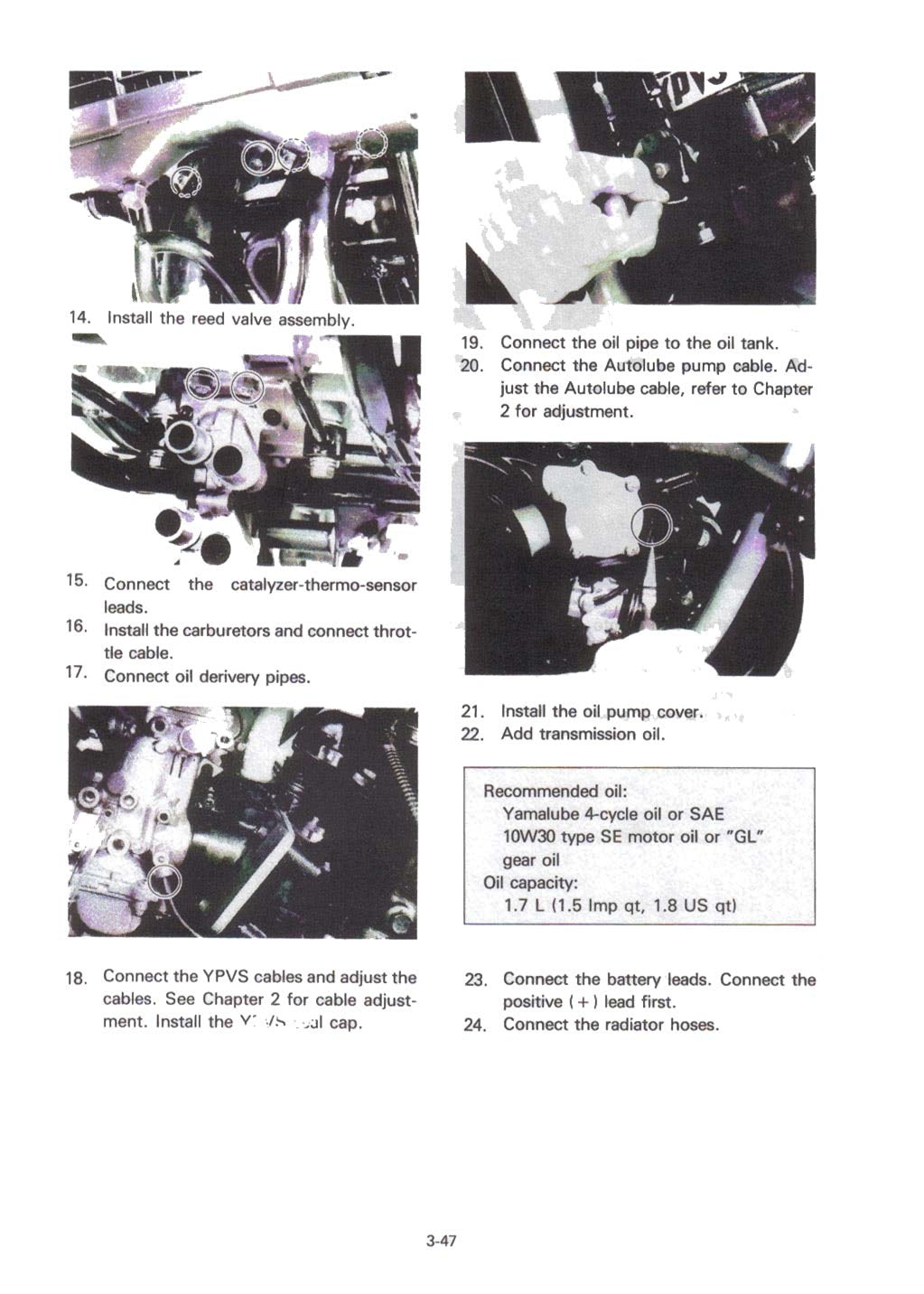

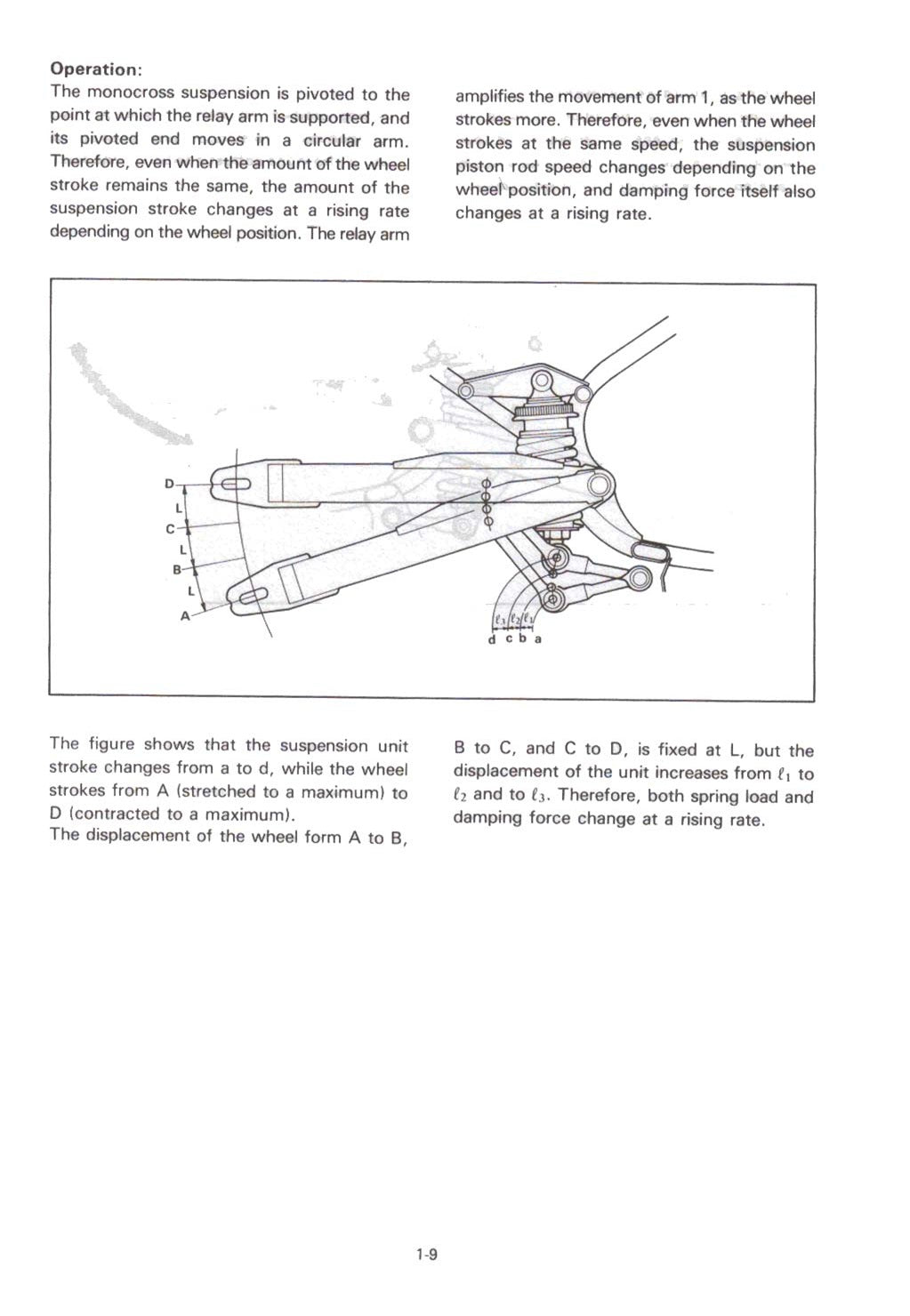

Sample page is shown in the second product picture.
Features Following Chapters...
1. General Information
- Major Features - YPVS, Air Assisted Fork, Monocross Suspension
- Model Identification+
- Special Tools & Gauges
2. Periodic Inspection & Adjustment
- Introduction
- Maintenance Intervals
- Carburetor
- Air Cleaner
- Autolube Pump
- Engine & Transmission Oil
- Coolant Level
- Handling notes of Coolant
- Clutch Adjustment
3. Engine Overhauling
- Notes on Maintenance
- Engine Removal
- Preparation for Removal
- Fuel Tank Assembly

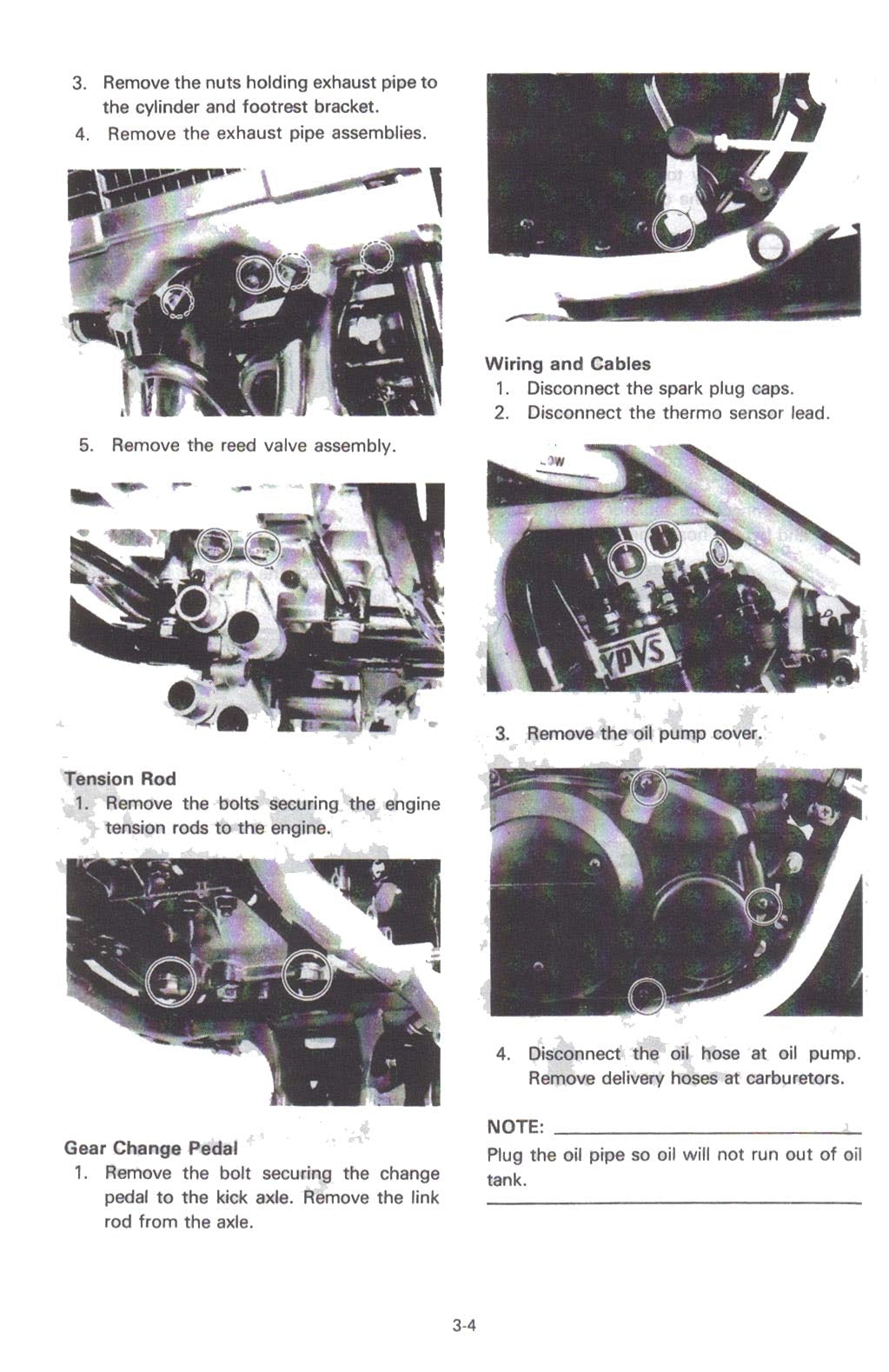

- Exhaust
- Gear Change Pedal
- Wiring & Cables
- Carburetor
- Generator
- Drive Chain
- Removal
- Disassembly
- Reed Valve Assembly
- Radiator Hose
- Thermosensor
- Cover
- Cylinder Head
- Cylinder
- Piston Pin & Piston
- Kick Crank
- Crankcase Cover Right
- Clutch Assembly & Primary Drive Gear
- Kick Axle Assembly
- Change Shaft Assembly
- Clutch Push Rod
- Cam Stopper Plate
- Bearing Stopper Plate
- Crankcase
- Transmission
- Shifter
- Neutral Switch
- Tachometer Gear
- Crankshaft
- Inspection & Repair
- Cylinder Head
- Cylinder
- Piston
- Piston clearance
- Piston Rings
- Piston Pin & Bearing
- Autolube Pump
- Clutch
- Primary Drive
- Kick Starter
- Shifter
- Transmission
- Crankshaft
- Neutral Switch
- Tachometer Gear
- Bearings & Oil Seals
- Crankcase
- Engine Assembly & Adjustment
- Important Information
- Engine Lubrication Chart
- Crankshaft Installation
- Tachometer Gear
- Neutral Switch
- Transmission & Shifter Installation
- Crankcase
- Kick Starter Assembly
- Kick Idle, Tachometer Drive, Primary Drive & Water Pump Drive Gears
- Clutch
- Right Hand Crankcase Cover
- Kick Crank Assembly
- Piston
- Cylinder
- Cylinder Head
- Thermosensor & Joint Cover
- Radiator Hose & Joint
- Reed Valve Assembly
- Mounting
4. Cooling System
- Operation
- Handling Notes
- Coolant Replacement
- Radiator Removal, Inspection & Installation
- Water Pump Disassembly, Inspection & Reassembly
5. Carburetion
- Carburetor Inspection & Repair
- Reed Valve Assembly Inspection
6. Chassis
- Front Wheel
- Front Wheel Removal
- Installing Front Wheel
- Front Axle
- Front Wheel Inspection
- Replacing Wheel Bearings
- Rear Wheel
- Rear Wheel Removal
- Installing Rear Wheel
- Rear Axle
- Replacing Wheel Bearings
- Rear Wheel Inspection
- Checking Brake Shoe Wear
- Brake Drum
- Brake Shoe Plate
- Front Disc Brake
- Caliper Pad Replacement
- Caliper Disassembly
- Master Cylinder Disassembly
- Brake Inspection & Repair
- Brake Reassembly
- Air Bleeding
- Front Fork
- Removal & Disassembly
- Inspection
- Assembly
- Steering Head
- Adjustment
- Disassembly
- Inspection
- Installation
- Monocross Suspension
- Features
- Principles of Operation
- Handling Notes
- Notes on Disposal
- Removal
- Swing Arm
- Inspection
- Removal
- Drive Chain & Sprockets
- Drive Sprocket
- Driven Sprocket
- Chain Inspection
- Chain Maintenance
- Cables & Fittings
- Cable Maintenance
- Throttle Maintenance
7. Electrical
- Ignition System
- Ignition Timing
- Spark Gap Test
- Pulser & Charging Coil Test
- Ignition Coil
- Charging System
- AC Generator
- IC Voltage Regulator
- Checking Silicon Rectifier
- Battery
- Checking
- Service Life
- Lighting & Signal Systems
- Lighting System Checks & Tests
- Self Cancelling Flasher System
- Headlight
- Water Temperature Gauge
- Description
- Operation
- Troubleshooting
- Inspection
8. Appendices
- Troubleshooting Guide
- Specifications
- Wiring Diagram
- Cable Routing
