Honda Common Motorcycle Fuel & Induction Systems Manual

Honda Common Motorcycle Fuel & Induction Systems Reference Manual

Provided in PDF form, in English Language, this is used along with the specific manual made for your bike to provide comprehensive repair and maintenance guidance.

This manual is designed to provide motorcycle owners, students and mechanics with a complete understanding of the construction and operating principles of motorcycle electrical systems. A troubleshooting chart for the diagnosis and correction of electrical problems.

Provided is the Honda Common Motorcycle Fuel & Induction Systems, issued in 1986. Total of 40 pages.

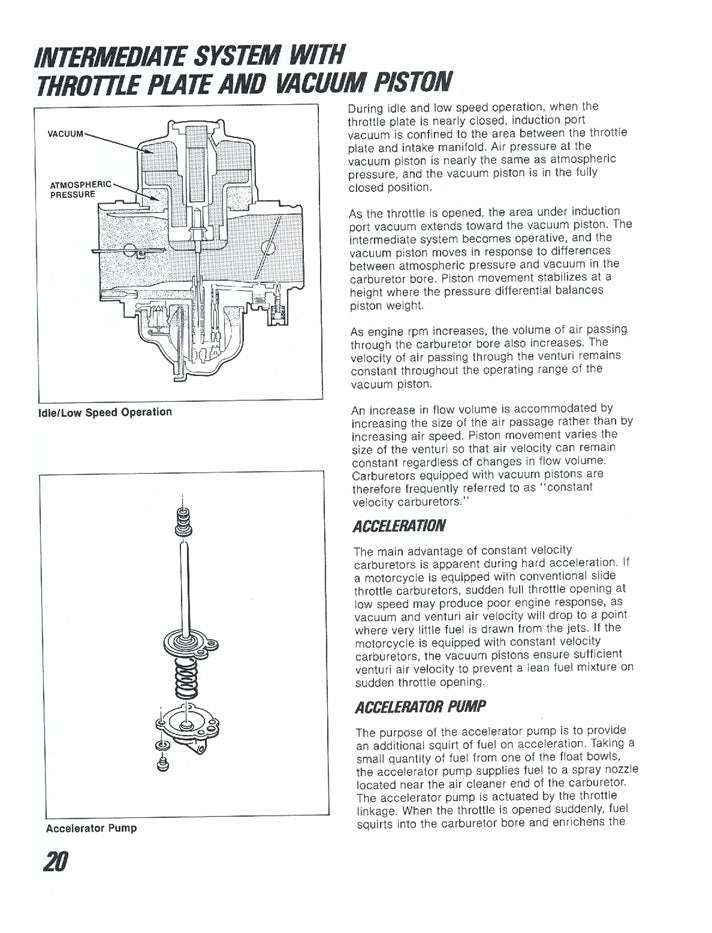

Sample pages are shown in the product pictures.

Features Following Chapters...

1. Motorcycle Carburation
   1. Air-Fuel Ratios
2. Basic Prinsiples of Carburetor Repair
   1. Atomizer Principle
   2. Venturi Effect
3. Float System
   1. Float Adjustment
   2. Adjustment Instructions
   3. Float System Vents
   4. Externally Vented
   5. Purge Control Valve
   6. Air Vent Control Valve
   7. Internally Vented
4. Throttle Valve
   1. Slide throttle Valve
   2. Flat Side Throttle Valve
   3. Slide Throttle Valve & Throttle Plate
   4. Throttle Valve Synchronisation
   5. Maintaining Correct Air-Fuel Mixture Ratios
5. Air-Bleeds
   1. Main Jet Air-Bleed
   2. Idle & Low Speed Air-Bleed
   3. Altitude Compensator
   4. Air-Cut Valve
6. Idle & Low Speed System
   1. Fuel Discharge Orificies
   2. Idle & Low speed Air-Fuel Mixture Adjustment
   3. Air Screw
   4. Pilot Screw (Fuel Screw)
   5. Idle Drop Procedure
   6. Idle Speed Adjustment
7. Intermediate System
   1. Throttle Valve Cutaway
   2. Jet Needle
8. Intermediate System with Throttle Plate & Vacuum Piston
   1. Vacuum Piston Construction
   2. Vacuum Piston Operation
   3. Acceleration
   4. Acceleration Pump
   5. Jet Needle
   6. Single Main Fuel Circuit
   7. Primary & Secondary Main Fuel Circuits
   8. Construction
   9. Operation
9. High Speed System
10. Fuel Mixture Control in Relation to Throttle Position
11. Dual Carburetors
    1. Low/Mid Range Flow
    2. High Range Flow
    3. Adjustment
12. Cold Starting Systems
    1. Choke Effect
    2. Choke Valve
    3. Mixture Enricher
    4. Plunger Valve Type
    5. Bimetal Type
    6. Thermowax Type
    7. Bystarter
13. Computerised Fuel Injection
    1. The ECU
14. Temperature Sensors
    1. Tw Sensor
    2. T1 Sensor
15. Computerized Fuel Injection
    1. Pressure Sensors
    2. P1 Sensor
    3. P2 Sensor
    4. PB Sensor
    5. Engine Speed Sensors
    6. NE Sensor CX500T
    7. NE Sensor CX650T
    8. Crankshaft Angle Sensor, NS Sensor
    9. Throttle Position Sensor Oth Sensor (Throttle Sensor)
    10. Fuel Delivery System Fuel Pump
    11. Pressure Regulator
16. Fuel Delivery System
    1. Fuel Injector
    2. Fuel Pump Shut Off Sensor
